Skeleton Air Regulator Wave Spring Kit for Planet Eclipse Markers

A quick, drop-in regulator upgrade developed by Infamous in collaboration with Powerhouse. The precision woven flat-wire wave spring helps your marker regulator return to setpoint pressure quickly for smoother, more consistent velocity and improved ball-on-ball accuracy. Includes two optional Volt-colored shims for markers that need additional velocity adjustment.

Introducing the Skeleton Air Regulator Wave Spring Kit

Infamous, in collaboration with Powerhouse, is bringing wave spring technology from the bottle regulator to the marker.

Wave spring technology uses a precision woven flat-wire spring to improve consistency and reliability. It helps your on-marker regulator return to its setpoint pressure quickly, producing smoother, more consistent velocity and improved ball-on-ball accuracy.

Powerhouse first introduced wave spring technology in its popular competition Haymkr 500 and TKO regulators because of the consistent, reliable performance it brought to the table. Now that same performance-driven technology is available as an upgrade for compatible Planet Eclipse marker regulators.

The Skeleton Air Regulator Wave Spring is a quick, drop-in upgrade that installs in only a few minutes. More than nine months of development and testing went into creating this pressure-controlling component for marker regulators.

Why upgrade?

• Helps the regulator return to setpoint pressure quickly

• Promotes smoother, more consistent velocity

• Supports improved ball-on-ball accuracy

• Precision woven flat-wire construction

• Quick, drop-in installation

• Includes two optional shims for additional velocity adjustment when needed

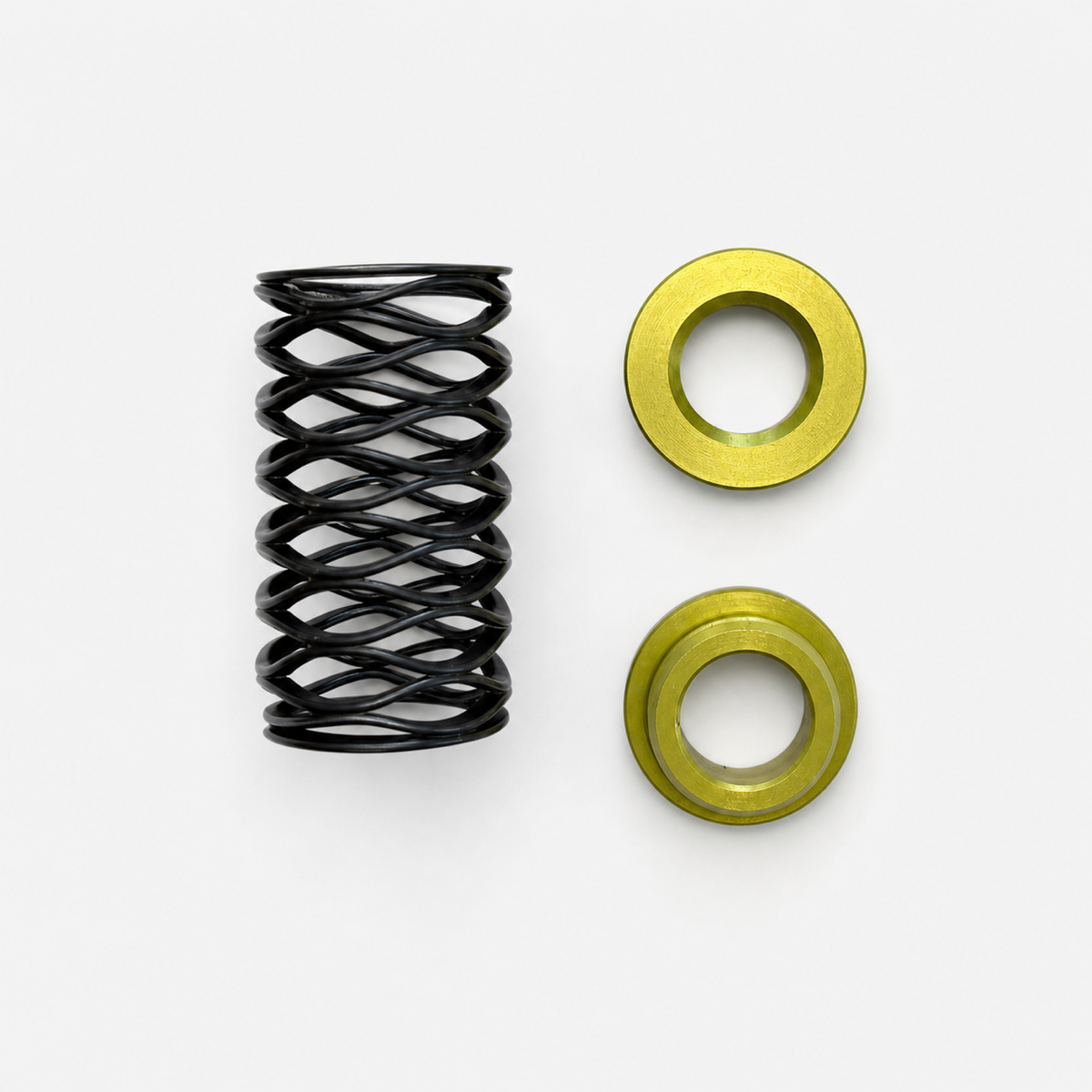

What is included?

• One Skeleton Air Regulator Wave Spring

• Two optional Volt-colored shims

What markers will this fit?

• • EMEK
  • ETHA
  • ETHA2
  • ETHA3
  • ETHA3M
  • CS1
  • CSR
  • CS1.5
  • CS2
  • GTEK
  • GTEK 160R
  • GEO 2
  • GEO 2.1
  • GEO 3
  • GEO 3.1
  • GEO 3.5
  • GEO GSL
  • GEO 4

Important installation instructions — read before installing

1. Double-check that both 5/32-inch screws on the ASA are firmly secured.

2. With a new spring installation, turn the regulator down approximately one full turn before airing up the marker.

3. Check velocity, then adjust it upward slowly to protect the solenoid.

4. Start with the spring alone. For most markers, the spring works properly without a shim and provides smooth, consistent velocity.

5. Only add a shim if you cannot reach the desired velocity with the spring alone.

6. Add one shim at a time and retest velocity after each change.

7. Only add the second shim if the desired velocity still cannot be reached after testing with one shim.

Shim setup guide

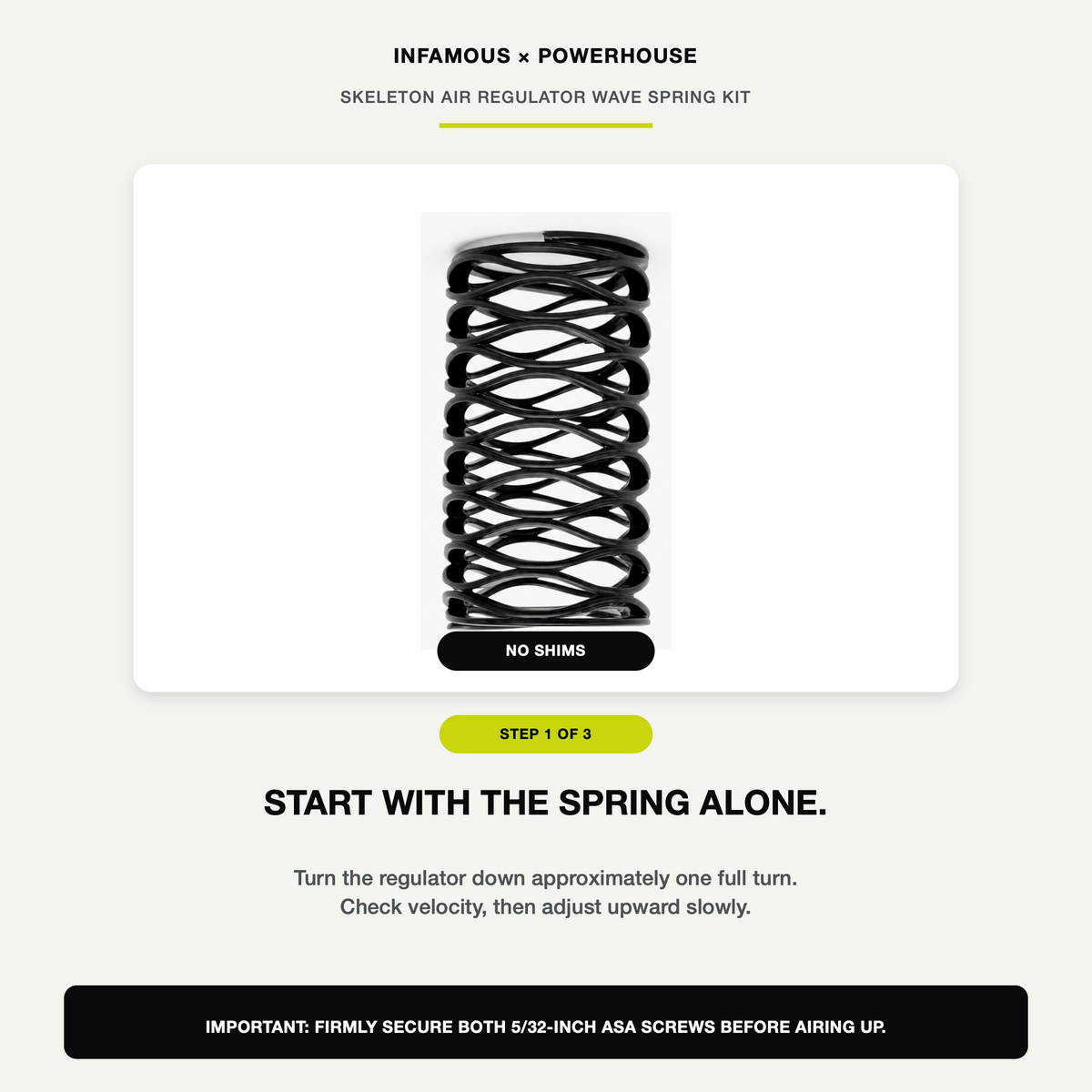

Step 1 — Start with the spring alone

Turn the regulator down approximately one full turn. Check velocity, then adjust upward slowly.

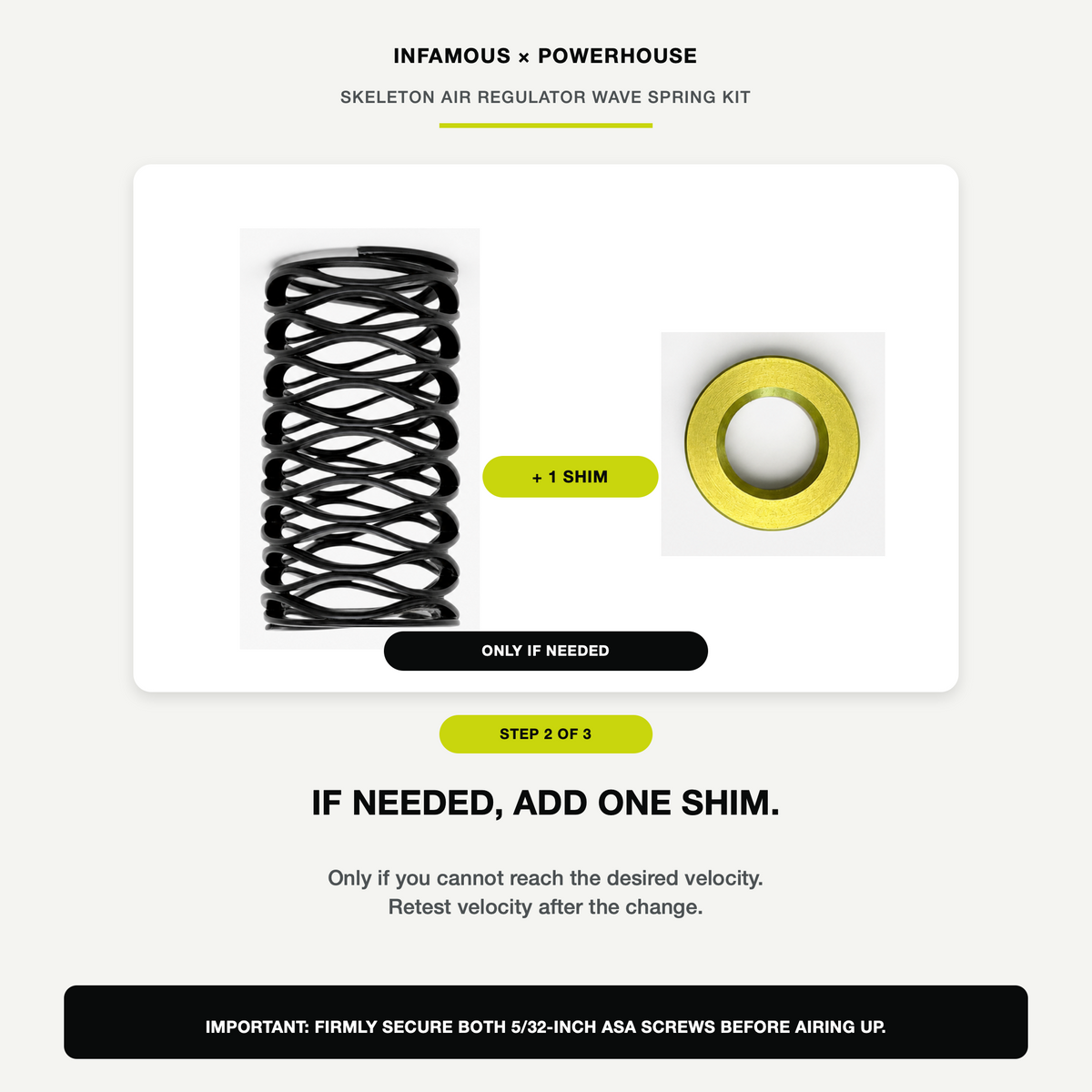

Step 2 — If needed, add one shim

Only add a shim if you cannot reach the desired velocity. Retest velocity after the change.

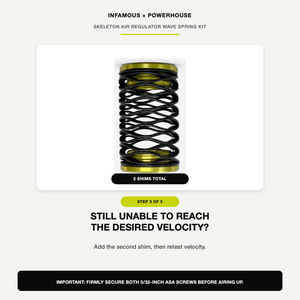

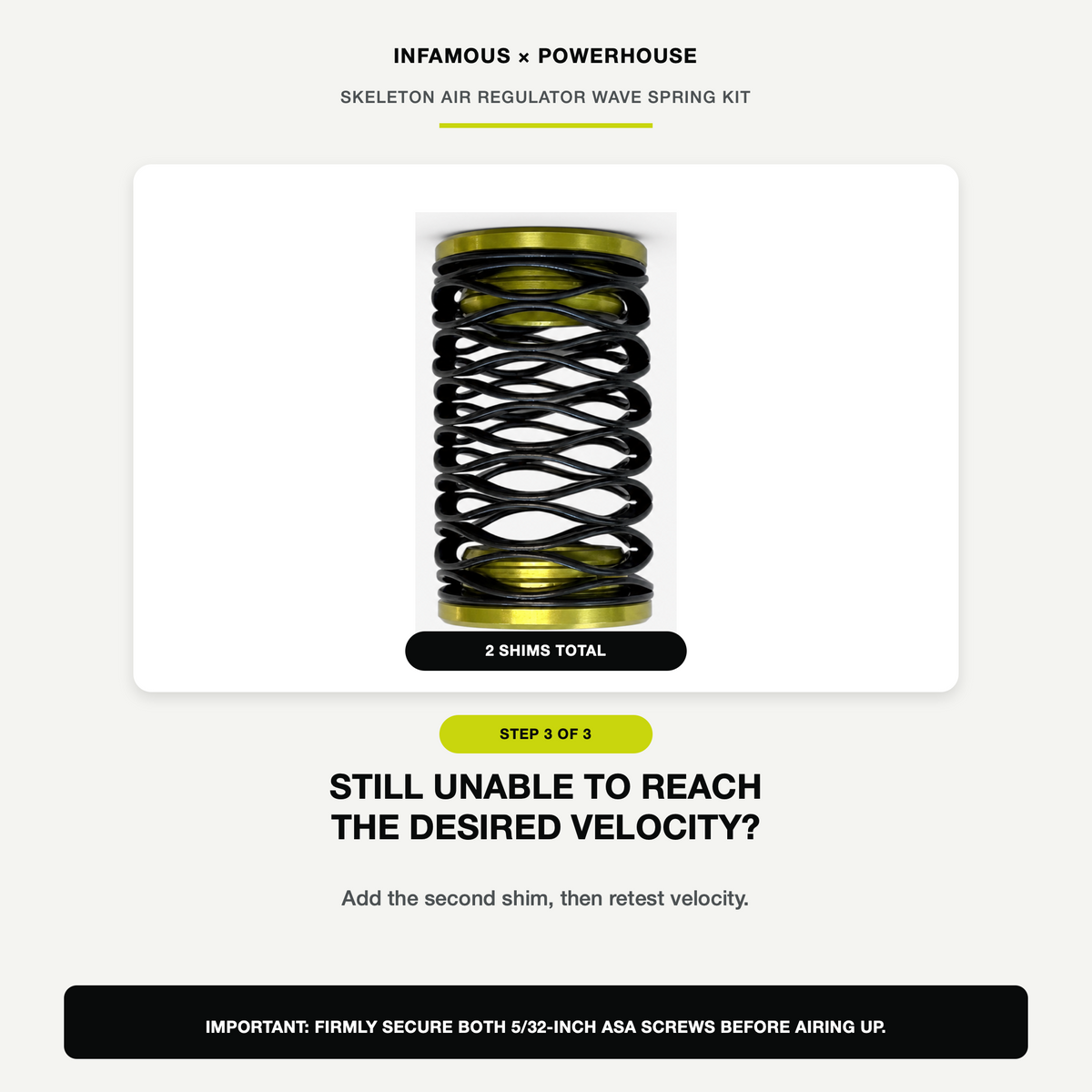

Step 3 — Still unable to reach the desired velocity?

Add the second shim, then retest velocity.

Important: Firmly secure both 5/32-inch ASA screws before airing up.
